VP系列阀门定位器

资料下载

VP Model, General Purpose Pneumatic Positioner

Specification and Options

Model		VP

Type		Pneumatic

Input		3-15psi


Position Indicator/Top Cover		Flat 90° Dome 90° Flat 180° Flat Lens (Fusion Coating) Dome Lens (Fusion Coating) Accessory Mount

Characterizing Cam		Linear Square Root Square 0 - 60 Degrees Equal Percent Custom Tangent 0 - 45 Degrees 0 - 35 Degrees

Spool Valve		Standard Flow Maximum Flow Standard Flow (Extreme Service) Maximum Flow (Extreme Service)

Port Gauges		(G) Brass (Y) Stainless Case (Z) Full Stainless

Position Transmitter		(T1) 4 - 20 mA (T2) 1 kΩ

Limit Switch		(S1) (2) SPDT Mechanical (S2) (2) SPST Proximity

VP Model, General Purpose Pneumatic Positioner,The VP Model Pneumatic Positioner uses a 3 - 15 psi input control signal to control valve or damper position. Many options are available to the basic unit to provide flexibility for your application. Positioner and options are designed for easy field installation. The base unit can be reconfigured to accommodate changes in your ongoing control needs, protecting your initial investment.

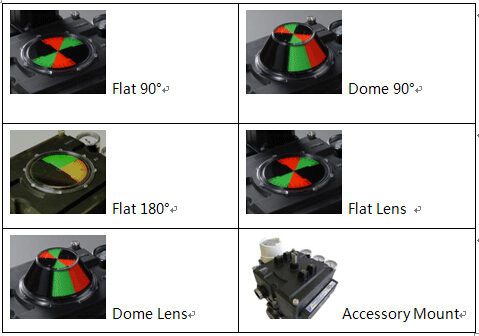

Position Indicator/Top Cover

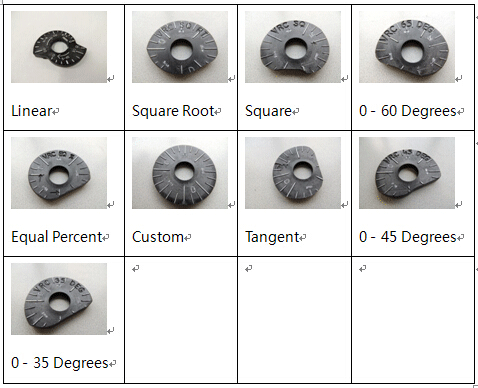

Characterizing Cam
