Specification options
Model
VE
Type
Electro-Pneumatic
Input
4 to 20 mA
Position Indicator/Top Cover
Flat 90°
Characterizing Cam
Linear
Square
Spool Valve
Standard Flow
Port Gauges
(G) Brass
Position Transmitter
(T1) 4 - 20 mA
Limit Switch
(S1) (2) SPDT Mechanical
Dome 90°
Flat 180°
Flat Lens (Fusion Coating)
Dome Lens (Fusion Coating)
Accessory Mount
Square Root
0 - 60 Degrees
Equal Percent
Custom
Tangent
0 - 45 Degrees
0 - 35 Degrees
Maximum Flow
Standard Flow (Extreme Service)
Maximum Flow (Extreme Service)
(Y) Stainless Case
(Z) Full Stainless
(T2) 1 kΩ
(S2) (2) SPST Proximity
The VE Model Pneumatic Positioner uses a 4 - 20 milliamp input control signal to control valve or damper position. Many options are available to the basic unit to provide flexibility for your application. Positioner and options are designed for easy field installation. The base unit can be reconfigured to accommodate changes in your ongoing control needs, protecting your initial investment.

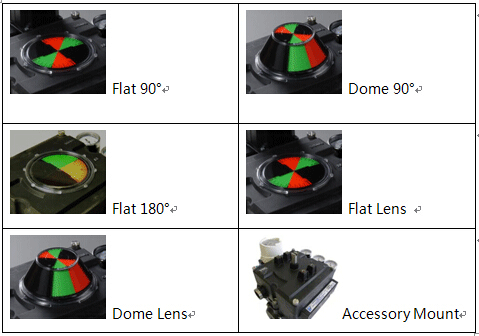

Position Indicator/Top Cover

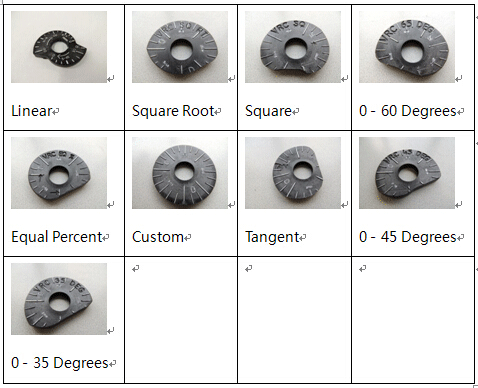

Characterizing Cam
